1803345
Manufacturer:
Phoenix Contact
Mfr.Part #:
1803345
Datasheet:
Description:

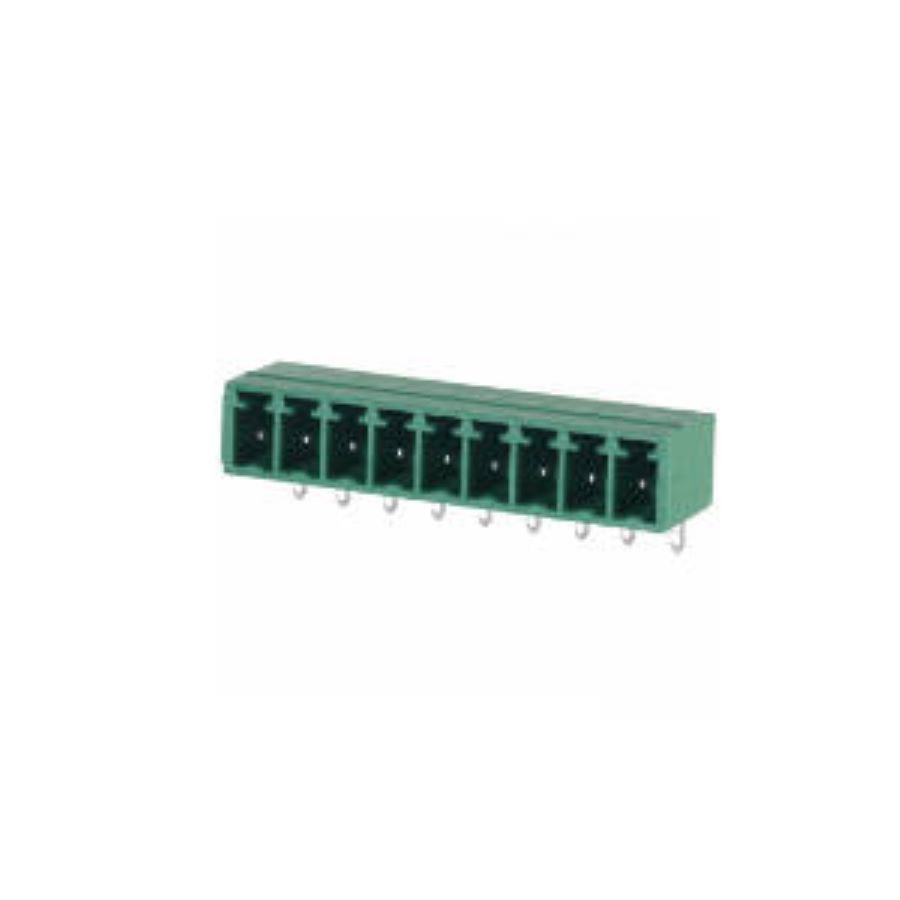

Terminal Blocks Through Hole 9 3.81 mm 8 A 160 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 640 mV |
| Length | 35.68 mm |
| Width | 35.68 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 160 V |
| Height | 7.4 mm |
| Material | PBT |
| Packaging | Bulk |
| Voltage Rating | 160 V |
| Depth | 9.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.81 mm |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Weight | 113.398093 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 3.81 mm |
| Current | 8 A |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Color | Green |
| Gender | Male |
| Number of Contacts | 9 |
| Number of Poles | 9 |
| Connector Type | Plug |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 9 |
| Number of Levels | 1 |
| Housing Color | Green |
| Connection Method | Plug |
| Current Rating (IEC) | 8 A |
| Voltage Rating (IEC) | 160 V |
Stock: 2
Distributors
pcbx
pcbxUnit Price$2.01507
Ext.Price$2.01507
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.01507 | $2.01507 |
